Company Sensocar Spain is one of the leading companies in Spain is producing load cell production and activity of the Company is the weight of the load cell pressure sensor of the company in three models designed and produced the SPD and SPA + and SPA .
Company Sensocar Spain is one of the leading companies in Spain is producing load cell production and activity of the Company is the weight of the load cell pressure sensor of the company in three models designed and produced the SPD and SPA + and SPA .
Insulation resistance >5000 M
Output Resistance 700 ± 3
Input Resistance 800 ± 3
Excitation Voltage 5÷15V
Vmin Emax/14000
Rated output 2 ± 0.1% mV/V
Accuracy class C3-C4
Technical data
Avalable in ATEX version (opcional)
Ball bearing support not necessary
With gas dischargers to protect against atmospheric discharges
Manufactured in Stainless steel
Fully welded. Protected against humidity IP-68(DIN 40050 )
Complies with 4000 divisions CE OIML-R60

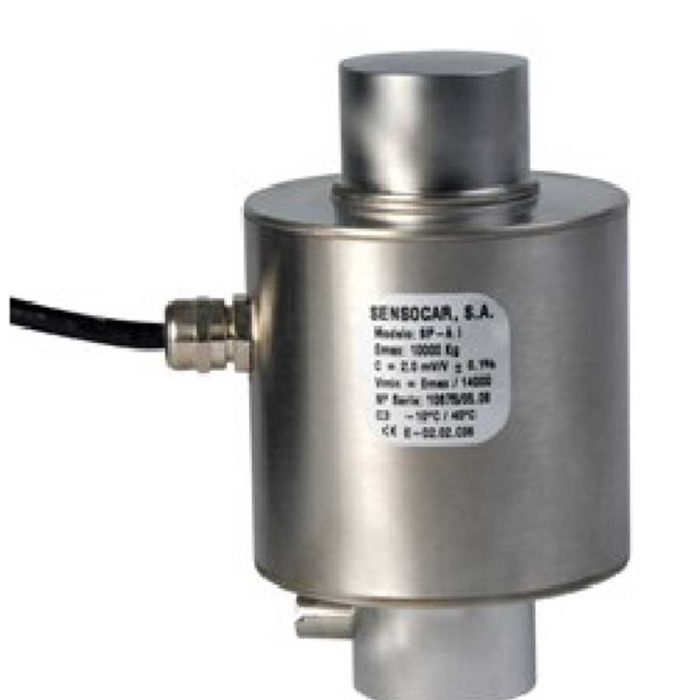

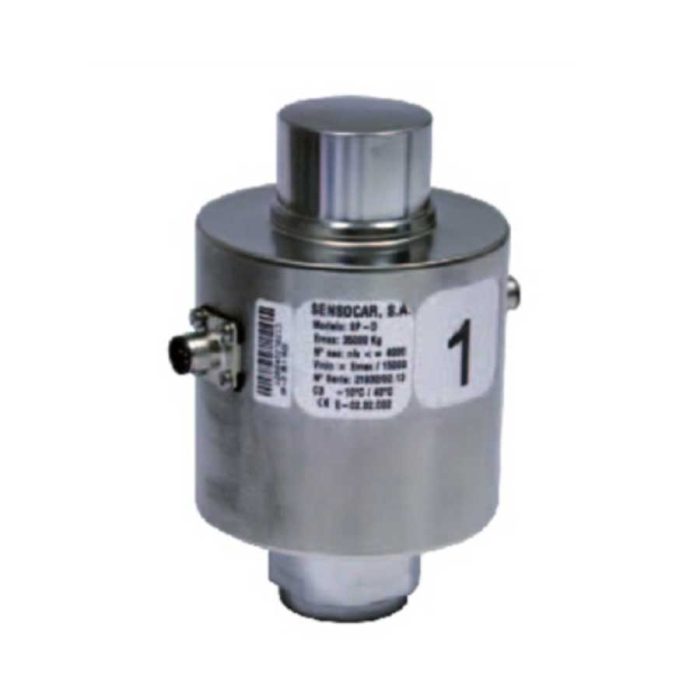

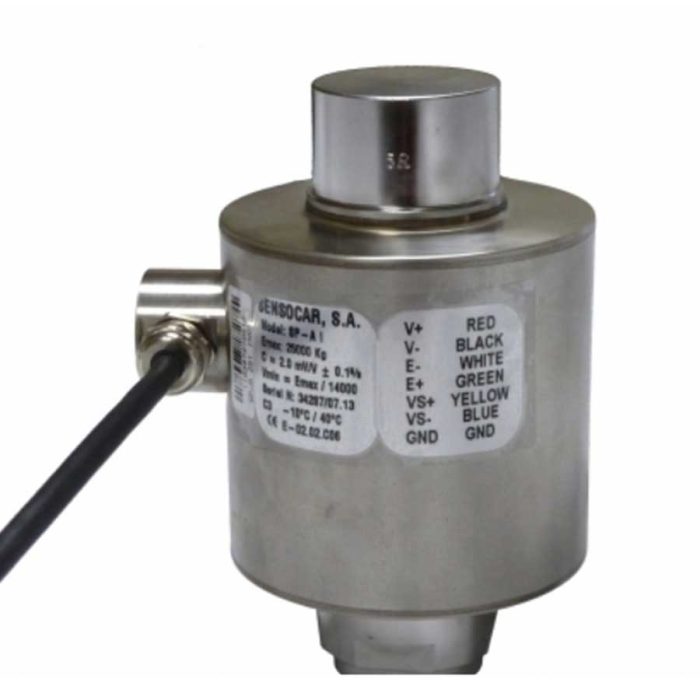

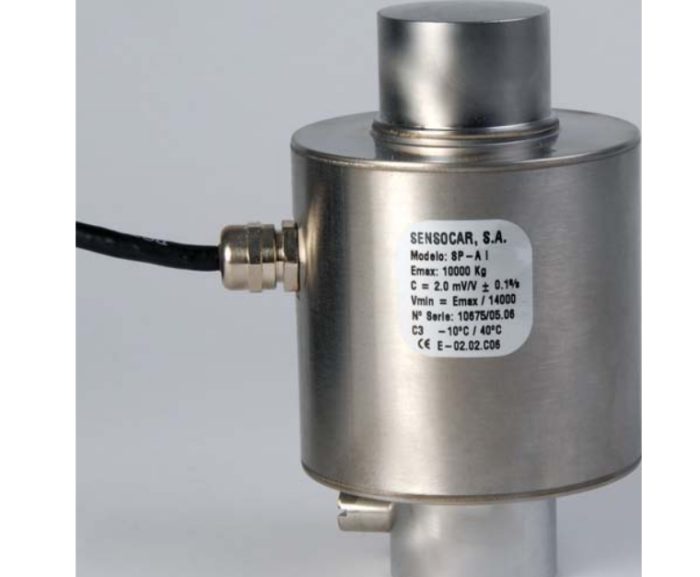

Compression load cell
Capacity 10 – 15 – 20 – 25 – 30 – 35 – 50 t
